SERVICES

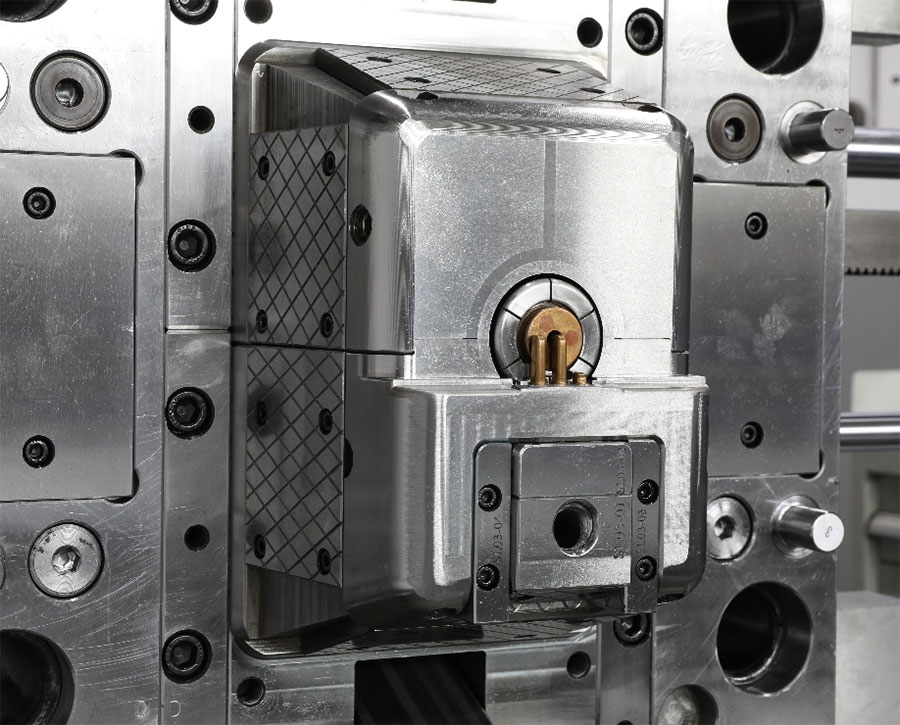

Precision Injection Mould Tooling

Since 2003 we’ve manufactured a wide variety of precision injection mould tools for major global brands.

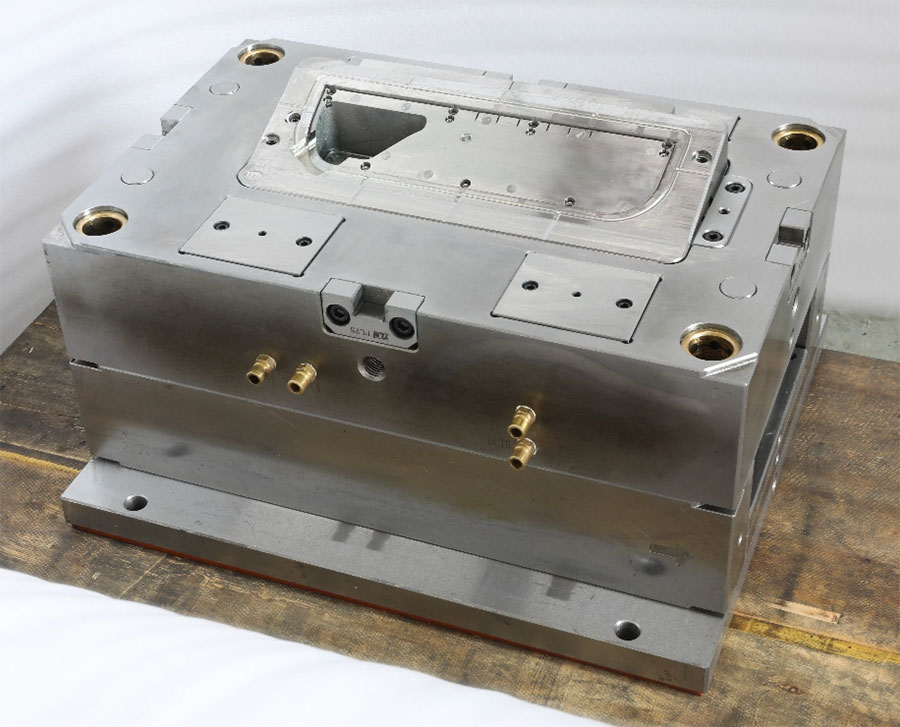

This ranges from simple, single impression cap tools weighing a few kilograms to complex, multi-cavity, or large plastic enclosures weighing up to 28 tonnes.

Your go-to choice for tooling excellence

Complex tool design engineering

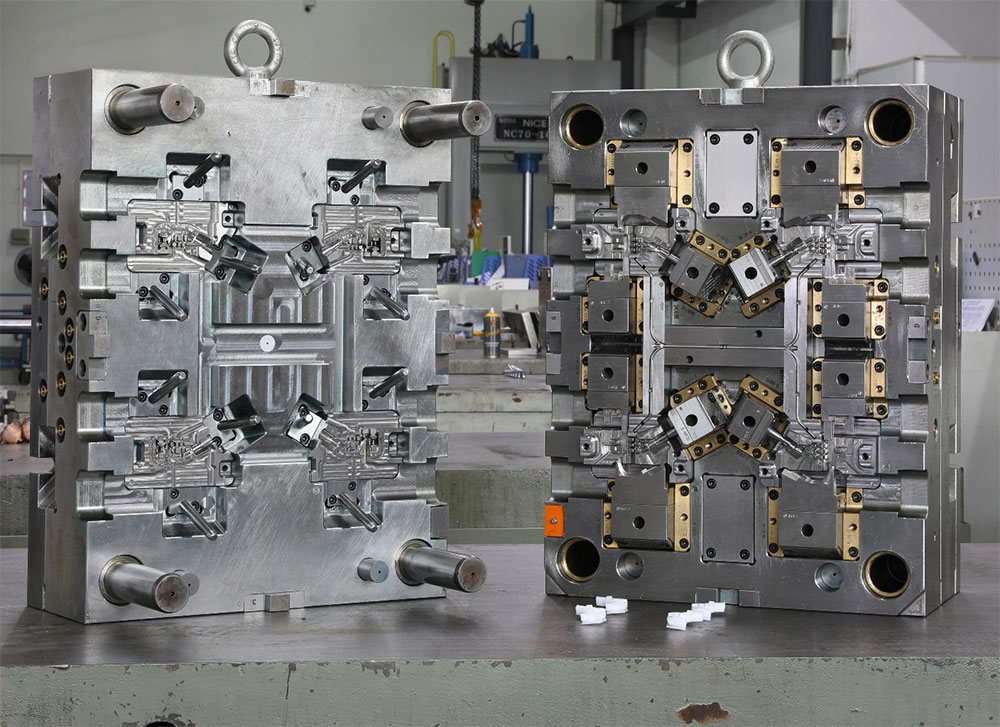

Multi-cavity tooling

Fast cycling mould tooling

Cost-effective tooling solutions

20 years' experience

In-house toolroom

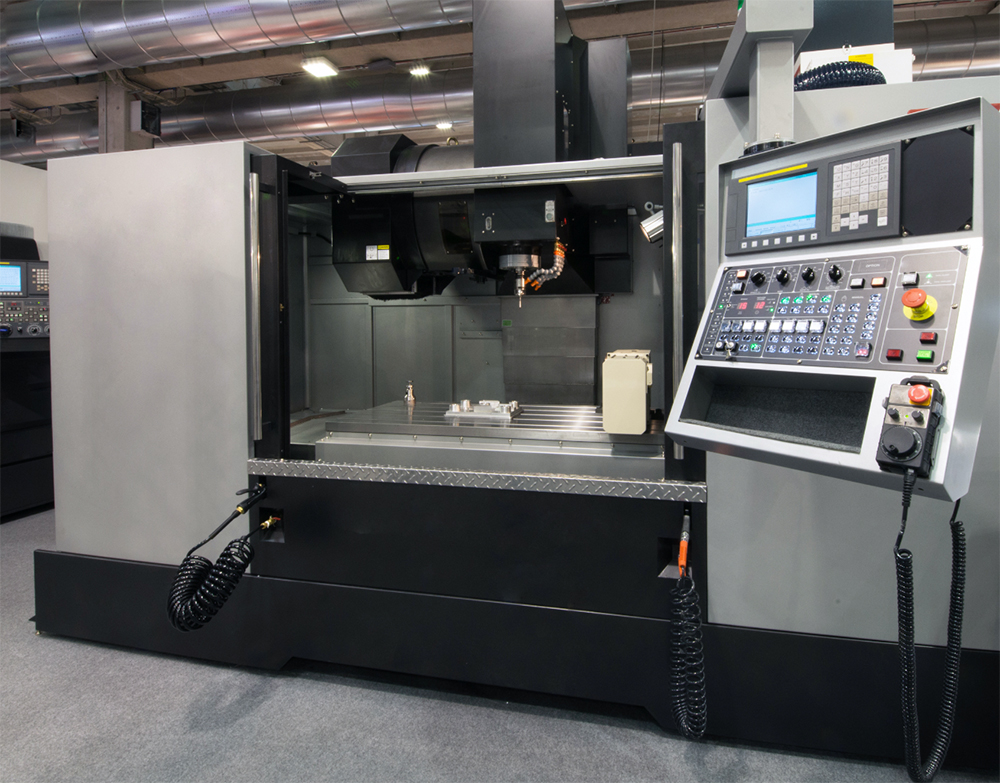

Everything in-house

Our experienced English injection mould toolmakers and tool design engineering team work alongside our staff at our wholly owned plastic injection mould toolroom in Shenzhen. This gives us complete control over the entire manufacturing process and helps ensure we follow a Western approach to toolmaking standards.

Alongside our UK headquarters, we have English-speaking sales and technical support teams strategically placed across the globe in areas such as Mexico, Europe, Canada, and North America to ensure you’re always kept up to date.

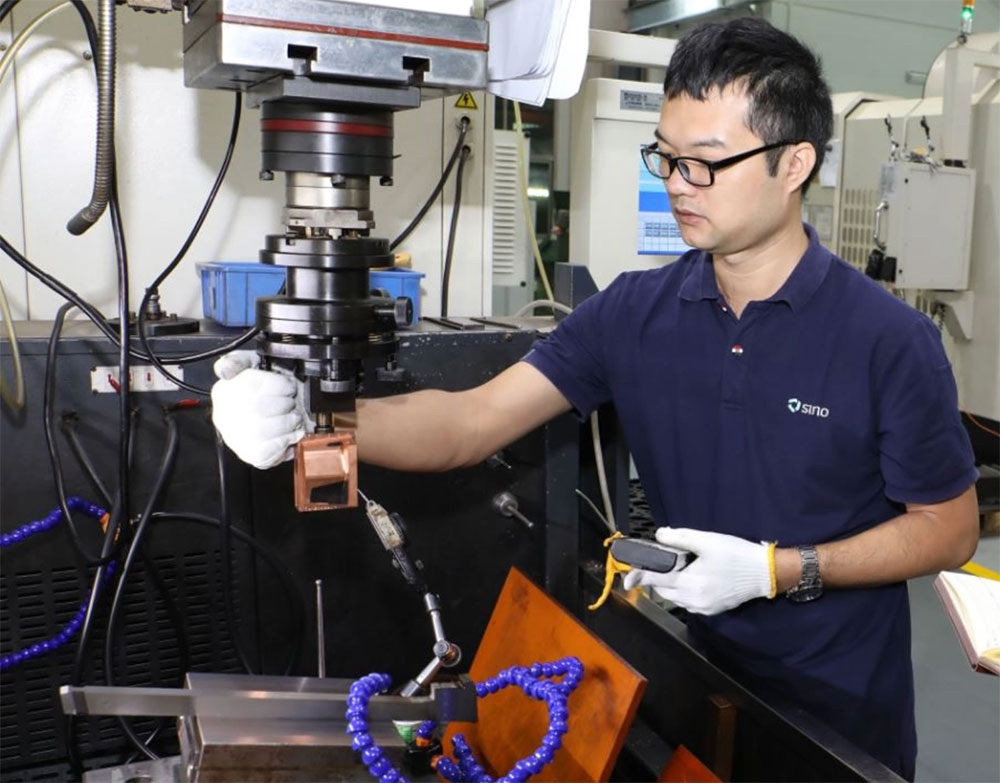

Expert technical design team

To ensure your 3D data has passed full tooling feasibility analysis and everything is totally ready when the tool design engineering stage begins, our highly skilled technical design team gets involved early on.

Our highly effective vertical integration strategy enables seamless progression from tool design to manufacture through to mould trial activities, maturation loops, and full sign-off.

In-house facilities & capabilities

Our UK-managed 54,000 sq. ft. factory in Shenzhen, China offers clients a winning mix of British standards and management alongside Chinese precision and cost efficiency.

Depending on the project and customer preference, we use high-speed CNC machining centres, EDM and WEDM machinery, and German, Swedish, and Japanese steels. All our work is certified to ISO 9001:2015.

Our comprehensive tool manufacturing offering includes:

Product design

We can get involved from the start of your product design process and translate your ideas into finished products that are ready for market. Our practical tool design and manufacturing experience can help you to resolve a variety of functional, aesthetic, and cost challenges before they become problematic and expensive.

IP protection

We understand it’s essential to protect your intellectual property and our culture ensures all members of staff are committed to upholding the highest security standards.

Your design data and product specifications are stored on our secure server and are only accessible by allocated members of our team working on your project. We’ll return all IP data at the end of a project and delete it from our server if required.

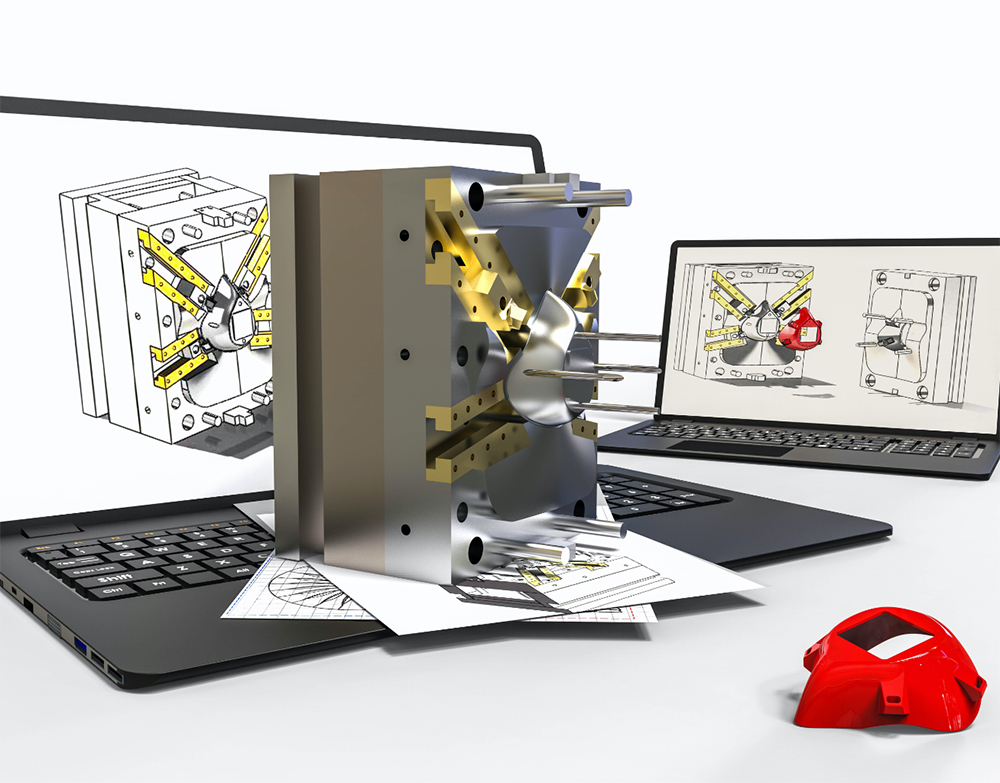

Tool design

Through the collaboration of our injection mould tool maker and tool design engineering team, Sino offers a full injection mould tool design service with considerable experience including single cavity, multi-cavity, hot runner, over-mould, and 2k tooling.

We advise on part tool design and suitability for precision injection mould creation using MoldFlow. This software allows us to provide detailed information on flow, cooling, and component distortion. Our design team works with you to optimise part design to improve product appearance and minimise moulding cost by reducing weight and cycle time. We use industry-leading Siemens NX for all tool design and 3D modelling activities.

Our technical teams based in the UK, Europe, Mexico, North America, Canada, and China provide full support, including factory visits, collection, and delivery, as well as a full tool modification and refurbishment service.

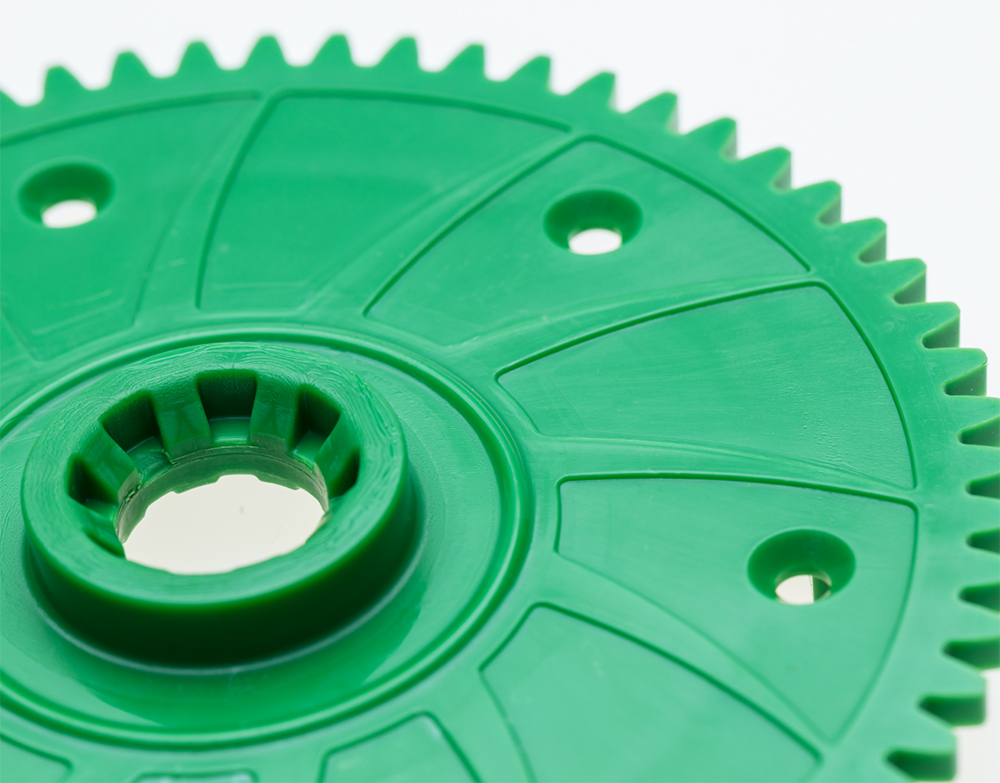

Mould tool validation

Our moulding shop is fully equipped to carry out comprehensive pre-production tool trials including de-humidifying dryers, chillers, water heaters, hot runner controllers, and robot de-moulding.

Mouldings are measured and evaluated in our metrology department and a full ISIR report is submitted with tool trails arranged according to your chosen maturation strategy. Agreed volumes of samples are sent to you for approval. PPAP (Product Part Approval Process) submission documentation can be supplied. All subject to your programme strategy and as agreed at the quotation stage.

Mould tool validation

Following tool completion and approval, we can manufacture initial production batches before the precision injection moulds are created and shipped to you. These parts are often shipped by air so the OEM can evaluate prototypes or carry out pre-production assembly before the tools arrive by sea.

Contact SINO’s specialist tooling team today to discuss your injection mould tooling requirements, supported by expert tool design engineering
